Wall Wine Rack, a BROGRUND Towel Rail Hack

I used 12 BROGRUND towel rails to create a wall wine rack.

IKEA Brogrund Towel Rail DIY Wall Wine Rack

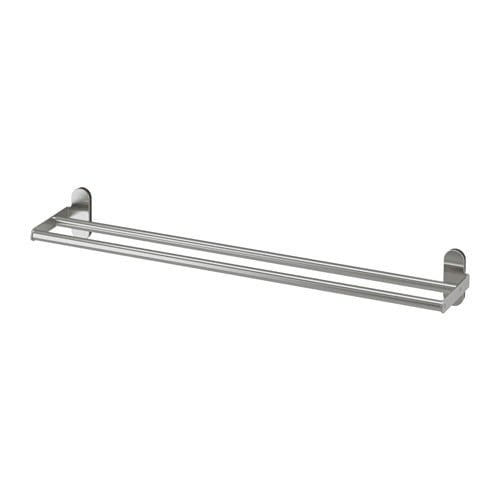

IKEA items used: BROGRUND Towel Rail (article 303.285.34), Quantity: 12

brogrund-towel-rail__0523583_pe643860_s4
Photo: IKEA.com

exploded_view_wall-wine-rack

The brackets (side pieces) for the towel rails come with a plastic cover and welded on metal mounting tabs. I first had to remove the plastic cover and metal tabs by prying them off with a flat head screwdriver and pliers.

Once the metal tabs were removed, I drilled two holes into the bracket to serve as new mounting holes (this was difficult as the brackets are made out of stainless steel – I had to get a special tungsten carbide tipped drill bit to do this).

With the towel rails modified, I mounted them onto a ½” plywood board (as per assembly diagram).

IKEA Brogrund Towel Rail DIY Wall Wine Rack

To finish off the look, I encased the assembly using red oak dimensional lumber. I also used a sheet of red oak furniture grade plywood as backing to cover the 1/2″ plywood (this also hides the towel rack mounting points). Finally the piece was stained and varnished.

IKEA Brogrund Towel Rail DIY Wall Wine Rack

~ by Marko Gasic

Take a look at these other brilliant hacks for wall wine racks

HUTTEN wall mounted wine rack

The IKEA HUTTEN 9-bottle wine rack reconfigured into a wall mounted side-on wine rack. Yes, you lose some storage, as in you’ll only get to store 6 instead of 9 bottles in one HUTTEN. But if you want a slim rack, this is the way to go. See full tutorial here.

discreet wine rack

No space but still want to sneak in a wine rack? Look no further than a picture ledge, like the RIBBA (discontinued) or MOSSLANDA. Attach the picture ledge aligned to the edge of an alcove and voilà, you get a rack that’s almost invisible. See more here.

Grundtal towel rail wine rack

You like Marko’s hack but you’re not sure you’re capable of all that hacking? Try this minimalist version for size. This uses the GRUNDTAL towel rail instead of the BROGRUND. See the details here.

The post Wall Wine Rack, a BROGRUND Towel Rail Hack appeared first on IKEA Hackers.
